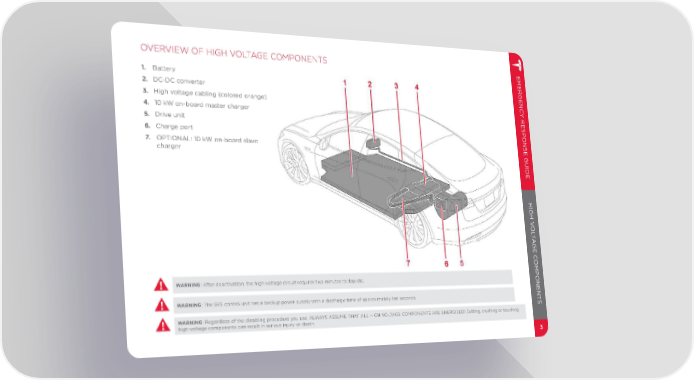

HIGH V OVERVIEW OF HIGH VOLTAGE COMPONENTS EMERGENC O L T A 1. Battery GE C 2. DC-DC converter 3. High voltage cabling (colored orange) OMPONENT 4. 10 kW on-board master charger Y RESPONSE GUIDE 5. Drive unit 6. Charge port S 7. OPTIONAL: 10 kW on-board slave charger HIGH V O L T A GE C OMPONENT WARNING: After deactivation, the high voltage circuit requires two minutes to deplete. WARNING: The SRS control unit has a backup power supply with a discharge time of approximately ten seconds. S WARNING: Regardless of the disabling procedure you use, ALWAYS ASSUME THAT ALL HIGH VOLTAGE COMPONENTS ARE ENERGIZED! Cutting, crushing or touching high voltage components can result in serious injury or death. 3
![Model S | 2012-13 Emergency Response Guide - Page 5](/cdn-cgi/image/width=600,quality=80,format=webp/https://cdn.relayto.com/images_originals/5bf6e17c0728a.jpeg)
