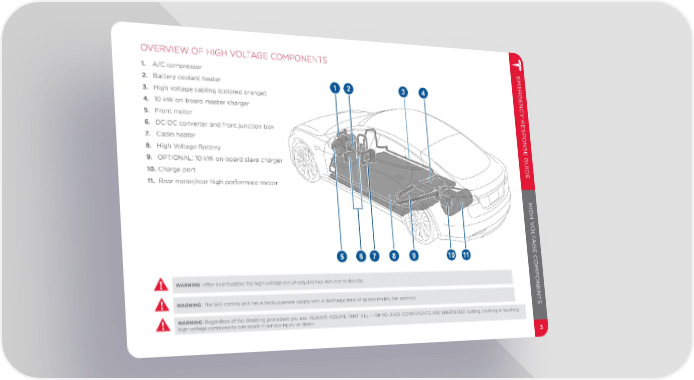

OVERVIEW OF HIGH VOLTAGE COMPONENTS EMERGENC 1. A/C compressor 2. Battery coolant heater 3. High voltage cabling (colored orange) 4. 10 kW on-board master charger Y RESPONSE GUIDE 5. Front motor 6. DC-DC converter and front junction box 7. Cabin heater 8. High Voltage Battery 9. OPTIONAL: 10 kW on-board slave charger 10. Charge port 11. Rear motor/rear high performace motor HIGH V O L T A GE C OMPONENT WARNING: After deactivation, the high voltage circuit requires two minutes to deplete. WARNING: The SRS control unit has a backup power supply with a discharge time of approximately ten seconds. S WARNING: Regardless of the disabling procedure you use, ALWAYS ASSUME THAT ALL HIGH VOLTAGE COMPONENTS ARE ENERGIZED! Cutting, crushing or touching high voltage components can result in serious injury or death. 3
