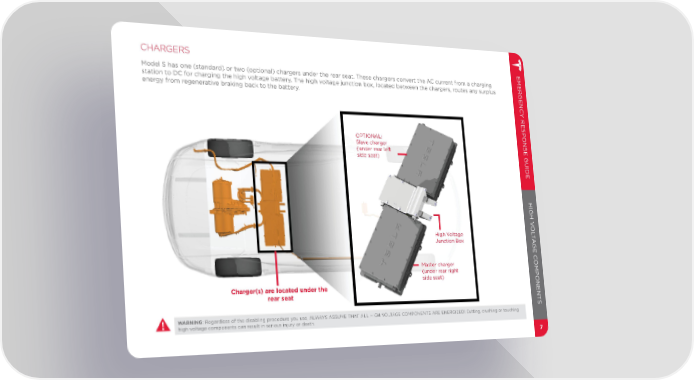

CHARGERS EMERGENC Model S has one (standard) or two (optional) chargers under the rear seat. These chargers convert the AC current from a charging station to DC for charging the high voltage battery. The high voltage junction box, located between the chargers, routes any surplus energy from regenerative braking back to the battery. Y RESPONSE GUIDE OPTIONAL: Slave charger (under rear left side seat) HIGH V O L High Voltage T Junction Box A GE C Master charger OMPONENT (under rear right side seat) Charger(s) are located under the rear seat S WARNING: Regardless of the disabling procedure you use, ALWAYS ASSUME THAT ALL HIGH VOLTAGE COMPONENTS ARE ENERGIZED! Cutting, crushing or touching high voltage components can result in serious injury or death. 7
