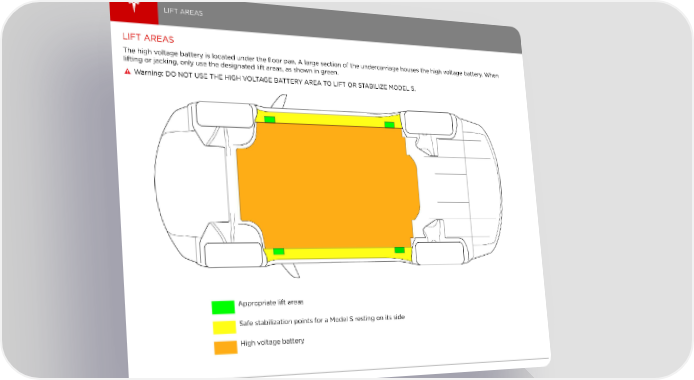

LIFT AREAS LIFT AREAS The high voltage battery is located under the floor pan. A large section of the undercarriage houses the high voltage battery. When lifting or jacking, only use the designated lift areas, as shown in green. Warning: DO NOT USE THE HIGH VOLTAGE BATTERY AREA TO LIFT OR STABILIZE MODEL S. Appropriate lift areas Safe stabilization points for a Model S resting on its side High voltage battery 22
