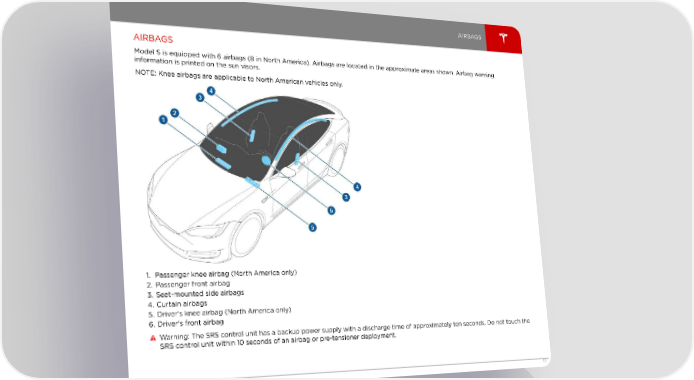

AIRBAGS AIRBAGS Model S is equipped with 6 airbags (8 in North America). Airbags are located in the approximate areas shown. Airbag warning information is printed on the sun visors. NOTE: Knee airbags are applicable to North American vehicles only. 1. Passenger knee airbag (North America only) 2. Passenger front airbag 3. Seat-mounted side airbags 4. Curtain airbags 5. Driver's knee airbag (North America only) 6. Driver's front airbag Warning: The SRS control unit has a backup power supply with a discharge time of approximately ten seconds. Do not touch the SRS control unit within 10 seconds of an airbag or pre-tensioner deployment. Airbags and Components 15
