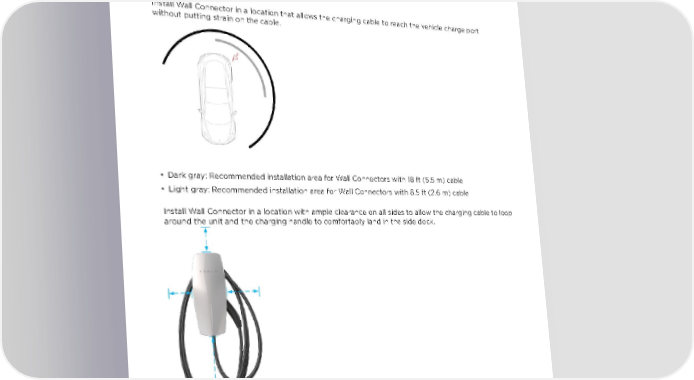

INSTALLATION Installation Considerations Wall Connector may be installed on any flat, vertical surface capable of supporting its weight (e.g. wall, pedestal, etc.). Wall Connector (wirebox and faceplate) weighs ~10 lb (4.5 kg). Choosing Location Install Wall Connector in a location that allows the charging cable to reach the vehicle charge port without putting strain on the cable. • Dark gray: Recommended installation area for Wall Connectors with 18 ft (5.5 m) cable • Light gray: Recommended installation area for Wall Connectors with 8.5 ft (2.6 m) cable Install Wall Connector in a location with ample clearance on all sides to allow the charging cable to loop around the unit and the charging handle to comfortably land in the side dock. NOTE: If constrained by space, a cable organizer can be installed near the Wall Connector (sold separately). Gen 3 Wall Connector Manual 13
