PRODUCT OVERVIEW This manual applies to Wall Connectors identified by part number 1457768-**-*. Product Specifications Voltage and Wiring Nominal 200-240 V AC single-phase Current Output Range 12 – 48 amps Terminal Blocks 2 12-4 AWG (3.5 - 25 mm ), copper only Supported Conduit Sizing ¾" (21 mm) default, 1" (27 mm) optional Grounding Scheme TN/TT Frequency 50/60 Hz Cable Length 8.5ƒ (2.6 m) or 18ƒ (5.5 m) Wall Connector Dimensions Height: 13.6” (345 mm) Width: 6.1” (155 mm) Depth: 4.3” (110 mm) Wire Box Bracket Dimensions Height: 9.8” (250 mm) Width: 4.7” (120 mm) Depth: 2.0” (50 mm) Weight (including wirebox) 10 lb. (4.5 kg) Operating Temperature -22˚F to 122˚F (-30˚C to 50˚C) Storage Temperature -40˚F to 185˚F (-40˚C to 85˚C) Enclosure Rating Type 3R Ventilation Not required Means of Disconnect External branch circuit breaker Ground Fault Circuit Interrupter Integrated, no additional required (CCID20) Wi-Fi 2.4 GHz, 802.11b/g/n Agency Approvals cULus - E351001 Transportation and storage: Ensure that Wall Connector is within storage temperature when moving, transporting, or storing. This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 4 Gen 3 Wall Connector Manual

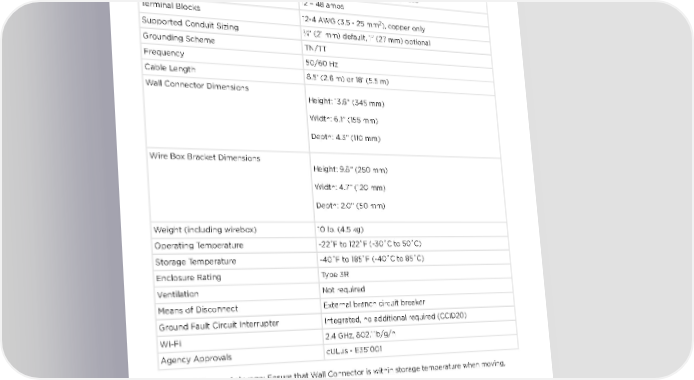

![Tesla Gen 3 Wall Connector | Installation Manual - Page 6](/cdn-cgi/image/width=600,quality=80,format=webp/https://cdn.relayto.com/images_originals/5e3f08beef5f1.jpeg)
