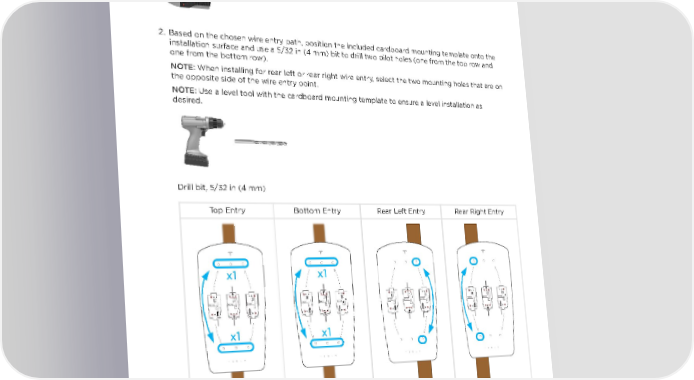

INSTALLATION Step 2: Prepare Mounting Surface 1. If applicable, use a stud finder to locate a wooden support stud. Plywood, or other flat wall surfaces capable of supporting the weight of the Wall Connector, may also be used. 2. Based on the chosen wire entry path, position the included cardboard mounting template onto the installation surface and use a 5/32 in (4 mm) bit to drill two pilot holes (one from the top row and one from the bottom row). NOTE: When installing for rear left or rear right wire entry, select the two mounting holes that are on the opposite side of the wire entry point. NOTE: Use a level tool with the cardboard mounting template to ensure a level installation as desired. Drill bit, 5/32 in (4 mm) Top Entry Bottom Entry Rear Left Entry Rear Right Entry Gen 3 Wall Connector Manual 17
