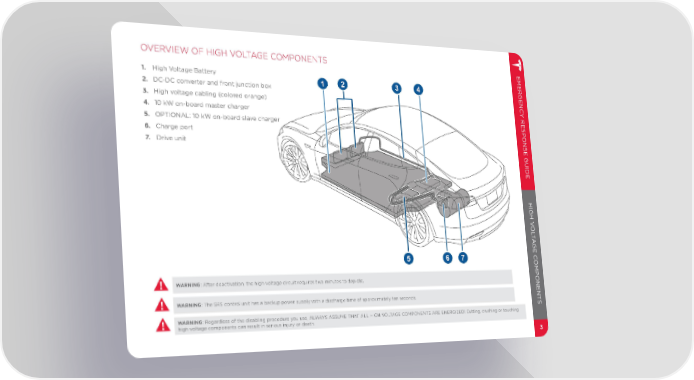

HIGH V OVERVIEW OF HIGH VOLTAGE COMPONENTS EMERGENC O L T A 1. High Voltage Battery GE C 2. DC-DC converter and front junction box 1 2 3 4 3. High voltage cabling (colored orange) OMPONENT 4. 10 kW on-board master charger Y RESPONSE GUIDE 5. OPTIONAL: 10 kW on-board slave charger 6. Charge port S 7. Drive unit HIGH V O L T A GE C 5 6 7 OMPONENT WARNING: After deactivation, the high voltage circuit requires two minutes to deplete. WARNING: The SRS control unit has a backup power supply with a discharge time of approximately ten seconds. S WARNING: Regardless of the disabling procedure you use, ALWAYS ASSUME THAT ALL HIGH VOLTAGE COMPONENTS ARE ENERGIZED! Cutting, crushing or touching high voltage components can result in serious injury or death. 3
