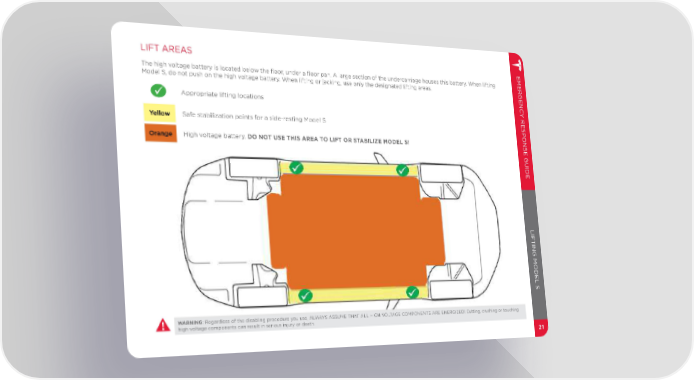

LIFTING MODEL S LIFT AREAS EMERGENC The high voltage battery is located below the fl oor, under a fl oor pan. A large section of the undercarriage houses this battery. When lifting Model S, do not push on the high voltage battery. When lifting or jacking, use only the designated lifting areas. Appropriate lifting locations Y RESPONSE GUIDE Yellow Safe stabilization points for a side-resting Model S Orange High voltage battery. DO NOT USE THIS AREA TO LIFT OR STABILIZE MODEL S! LIFTING MODEL S WARNING: Regardless of the disabling procedure you use, ALWAYS ASSUME THAT ALL HIGH VOLTAGE COMPONENTS ARE ENERGIZED! Cutting, crushing or touching high voltage components can result in serious injury or death. 21
