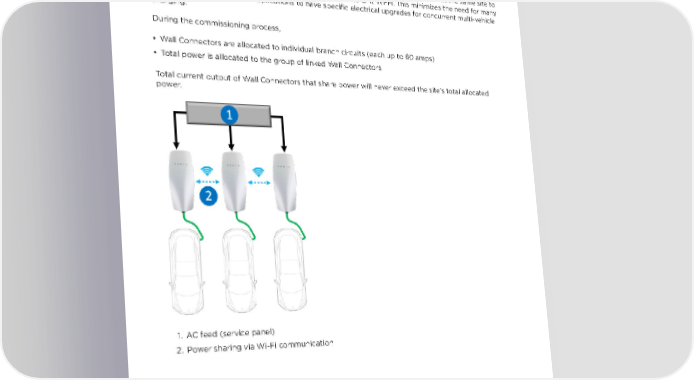

POWER SHARING Power Sharing Overview This feature will be available in a future over-the-air firmware update. The firmware-based power sharing feature enables up to 16 Wall Connectors installed at the same site to intelligently share the site's total available power via unit-to-unit Wi-Fi. This minimizes the need for many residential and commercial applications to have specific electrical upgrades for concurrent multi-vehicle charging. During the commissioning process, • Wall Connectors are allocated to individual branch circuits (each up to 60 amps) • Total power is allocated to the group of linked Wall Connectors Total current output of Wall Connectors that share power will never exceed the site's total allocated power. 1. AC feed (service panel) 2. Power sharing via Wi-Fi communication Gen 3 Wall Connector Manual 23
