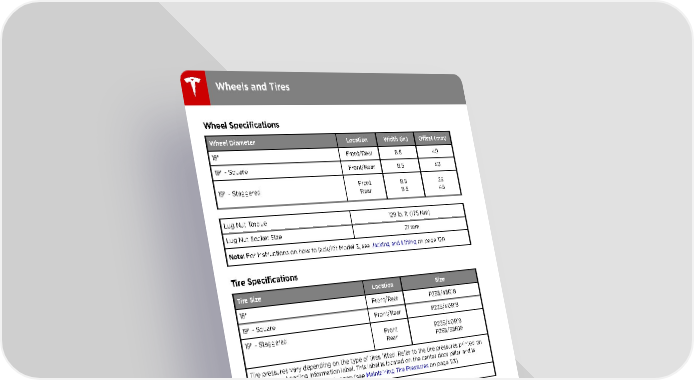

Wheels and Tires Wheel Specifications Wheel Diameter Location Width (in) Offset (mm) 18" Front/Rear 8.5 40 19" - Square Front/Rear 8.5 40 19" - Staggered Front 8.5 35 Rear 9.5 45 Lug Nut Torque 129 lb. ft (175 Nm) Lug Nut Socket Size 21 mm Note: For instructions on how to jack/lift Model 3, see Jacking and Lifting on page 129. Tire Specifications Tire Size Location Size 18" Front/Rear P235/45R18 19" - Square Front/Rear P235/40R19 19" - Staggered Front P235/40R19 Rear P265/35R19 Tire pressures vary depending on the type of tires fitted. Refer to the tire pressures printed on the Tire and Loading Information label. This label is located on the center door pillar and is visible when the driver†s door is open (see Maintaining Tire Pressures on page 113). Winter tires can be purchased from a Tesla store. 138 Model 3 Owner's Manual
