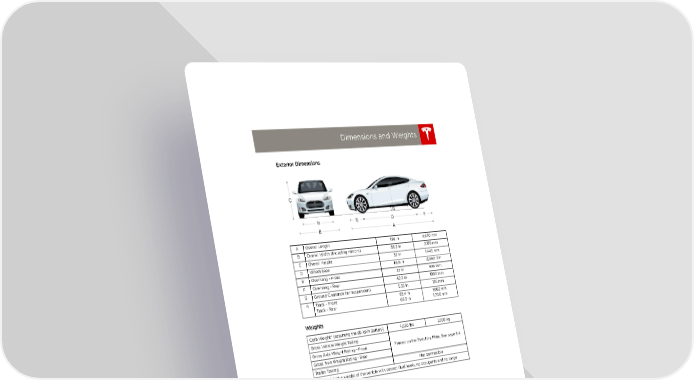

book.book Page 5 Friday, July 19, 2013 12:53 PM Dimensions and Weights Dimensions and Weights Exterior Dimensions AOverall Length 196 in 4,970 mm B Overall Width (including mirrors) 86.2 in 2,189 mm C Overall Height 57 in 1,445 mm D Wheel Base 116.5 in 2,960 mm EOverhang - Front 37 in 929 mm F Overhang - Rear 42.5 in 1080 mm G Ground Clearance (air suspension) 5.35 in 136 mm HTrack - Front 65.4 in 1,662 mm Track - Rear 66.9 in 1,700 mm Weights Curb Weight* (assuming the 85 kWh Battery) 4,630 lbs 2,100 kg Gross Vehicle Weight Rating Gross Axle Weight Rating - Front Printed on the Statutory Plate. See page 8.4. Gross Axle Weight Rating - Rear Trailer Towing Not permissible *Curb Weight = weight of the vehicle with correct fluid levels, no occupants and no cargo SPECIFICATIONS 8.5
