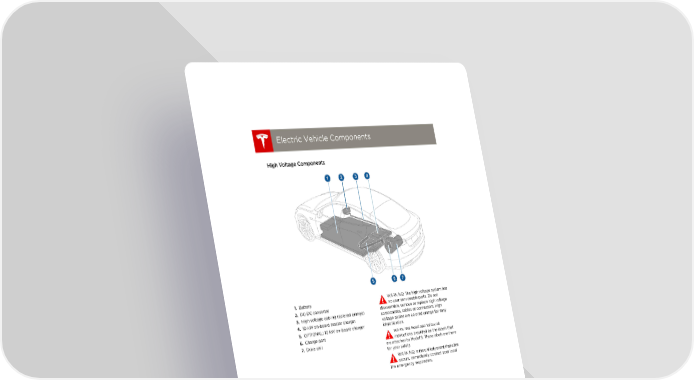

book.book Page 2 Friday, July 19, 2013 12:53 PM Electric Vehicle Components Electric Vehicle Components CElHectARriGcI VNGehicle Components High Voltage Components 1. Battery WARNING: The high voltage system has 2. DC-DC converter no user serviceable parts. Do not 3. High voltage cabling (colored orange) disassemble, remove or replace high voltage 4. 10 kW on-board master charger components, cables or connectors. High voltage cables are colored orange for easy 5. OPTIONAL: 10 kW on-board charger identification. 6. Charge port WARNING: Read and follow all 7. Drive unit instructions provided on the labels that are attached to Model S. These labels are there for your safety. WARNING: In the unlikely event that a fire occurs, immediately contact your local fire emergency responders. 6.2 MODEL S OWNERS MANUAL
