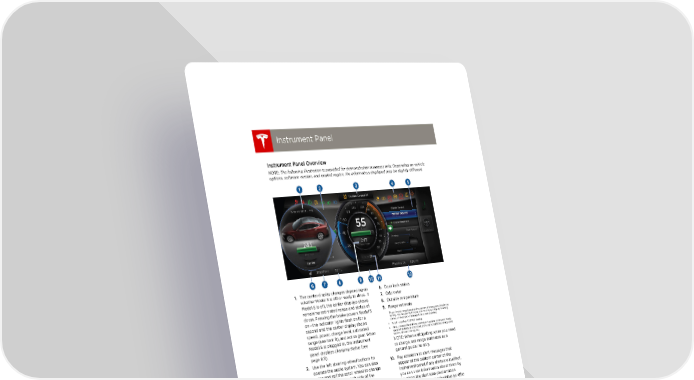

book.book Page 8 Friday, July 19, 2013 12:53 PM Instrument Panel Instrument Panel Instrument Panel Instrument Panel Overview NOTE: The following illustration is provided for demonstration purposes only. Depending on vehicle options, software version, and market region, the information displayed may be slightly different. 1. The center display changes depending on 6. Door lock status whether Model S is off or ready to drive. If 7. Odometer Model S is off, the center displays shows 8. Outside temperature remaining estimated range and status of 9. Range estimate doors. Pressing the brake powers Model S on—the indicator lights flash on for a The estimated range based on the amount of energy remaining in the Battery. You can specify how you want to display range by touching second and the center display shows Controls > Settings > Language & Units and choosing: speed, power, charge level, estimated • Rated - based on ECE R101 testing. • Ideal - assumes ideal driving conditions based on driving at a steady range (see item 9), and active gear. When speed of 89 km/h on a flat road, and using no additional energy (seat Model S is plugged in, the instrument heaters, air conditioning, etc). panel displays charging status (see NOTE: When anticipating when you need page6.8). to charge, use range estimates as a general guideline only. 2. Use the left steering wheel buttons to 10. Pay attention to alert messages that operate the audio system. You can also appear at the bottom center of the press and roll the scroll wheel to change instrument panel. If any alerts are in effect, what displays on the left side of the you can view information about them by instrument panel (see page 4.3). touching the alert icon (exclamation 3. Pay attention to important status mark) on the touchscreen’s status bar (the messages that display here. topmost area of the touchscreen). 4. All indicator lights flash on briefly when 11. Currently selected gear Park, Reverse, you press the brake to prepare to drive. Neutral, or Drive. They should then turn off, unless the light 12. Date and time applies to a current situation (see page4.9). 5. Use the right steering wheel buttons for voice commands, to handle telephone calls, and to control some features of ModelS. You can customize what features the scroll wheel can control (see page4.4). 4.8 MODEL S OWNERS MANUAL
