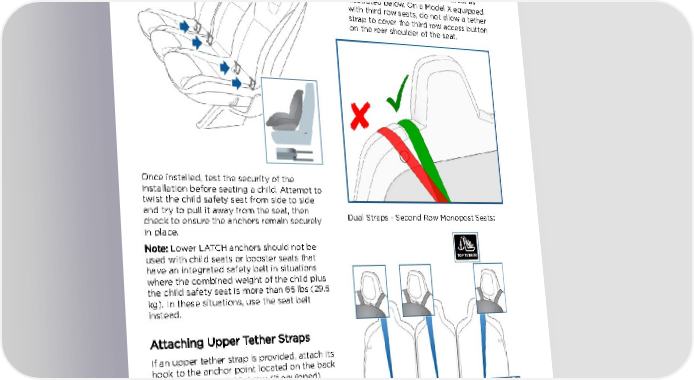

Child Safety Seats MONOPOST SEATS: For dual-strap tethers, position a strap on each side of the head restraint. Note: If Model X is equipped with the optional six seat interior, a center seating position is not available in the second row. Warning: When routing tether straps, keep the strap close to the headrest as illustrated below. On a Model X equipped with third row seats, do not allow a tether strap to cover the third row access button on the rear shoulder of the seat. Once installed, test the security of the installation before seating a child. Attempt to twist the child safety seat from side to side and try to pull it away from the seat, then Dual Straps - Second Row Monopost Seats: check to ensure the anchors remain securely in place. Note: Lower LATCH anchors should not be used with child seats or booster seats that have an integrated safety belt in situations where the combined weight of the child plus the child safety seat is more than 65 lbs (29.5 kg). In these situations, use the seat belt instead. Attaching Upper Tether Straps If an upper tether strap is provided, attach its hook to the anchor point located on the back of the second and third row (if equipped) seats. Note: The location of anchor points may not be readily visible but can be found by identifying a slice in the seat's material. Warning: Tighten upper tether straps according to the instructions provided by the manufacturer of the child safety seat. Warning: USE ONLY SEAT BELT RETAINED CHILD SAFETY SEATS IN THE CENTER SEATING POSITION. 38 Model X Owner's Manual
