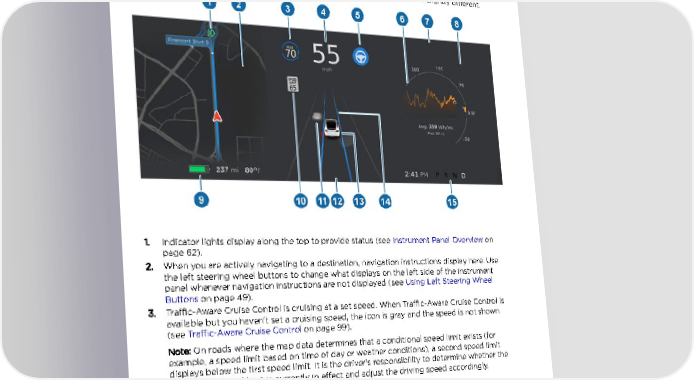

Instrument Panel Instrument Panel - Driving When Model X is driving (or ready to drive), the instrument panel shows your current driving status and a real-time visualization of the road as detected by the Autopilot components (see About Autopilot on page 96). The visualization automatically zooms in and out as needed to inform you when a vehicle is detected in your blind spot. Note: The following illustration is provided for demonstration purposes only. Depending on vehicle options, software version, and market region, the information displayed may be slightly different. 1. Indicator lights display along the top to provide status (see Instrument Panel Overview on page 62). 2. When you are actively navigating to a destination, navigation instructions display here. Use the left steering wheel buttons to change what displays on the left side of the instrument panel whenever navigation instructions are not displayed (see Using Left Steering Wheel Buttons on page 49). 3. Traffic-Aware Cruise Control is cruising at a set speed. When Traffic-Aware Cruise Control is available but you haven't set a cruising speed, the icon is gray and the speed is not shown (see Traffic-Aware Cruise Control on page 99). Note: On roads where the map data determines that a conditional speed limit exists (for example, a speed limit based on time of day or weather conditions), a second speed limit displays below the first speed limit. It is the driver's responsibility to determine whether the conditional speed limit is currently in effect and adjust the driving speed accordingly. 4. Driving speed. 5. Autosteer is actively steering Model X. When Autosteer is available but you haven't activated it, the icon is gray (see Autosteer on page 106). 6. On the Energy graph, dashed lines appear on the power meter if Model X is limiting power. The dashed lines appear on the top portion (energy being used) when power available for acceleration is being limited, and on the bottom portion (energy being gained) when power that can be gained by regenerative braking is limited. Model X limits power for many reasons. Here are just a few examples: • Acceleration may be limited when the Battery is reaching a low state of charge or if the powertrain is hot. • Both acceleration and regenerative braking may be limited when the ambient temperature is either very high or very low. 66 Model X Owner's Manual
