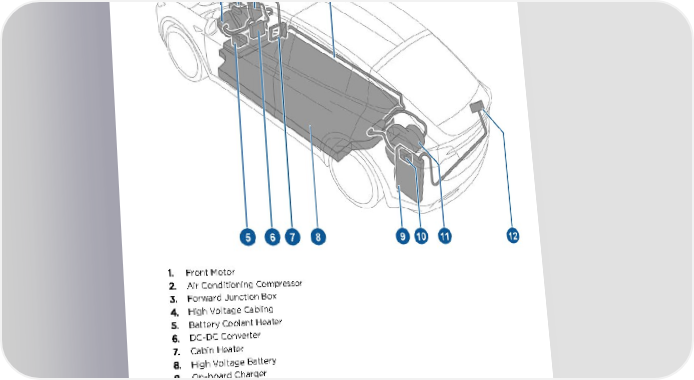

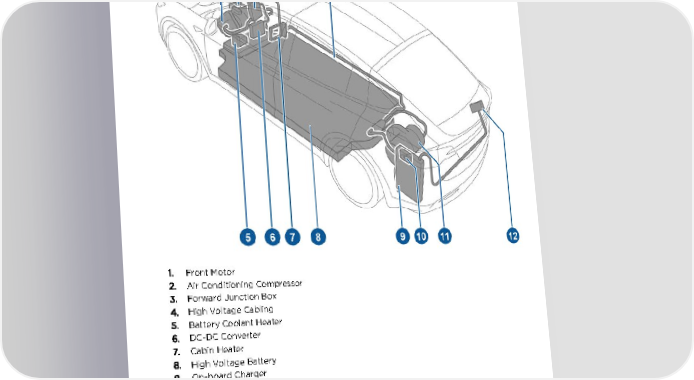

Electric Vehicle Components Charging Electric Vehicle Components High Voltage Components 1. Front Motor 2. Air Conditioning Compressor 3. Forward Junction Box 4. High Voltage Cabling 5. Battery Coolant Heater 6. DC-DC Converter 7. Cabin Heater 8. High Voltage Battery 9. On-board Charger 10. Charge Port 11. Rear Motor 12. HV Cable to Rear HVAC Assembly Warning: The high voltage system has no user serviceable parts. Do not disassemble, remove or replace high voltage components, cables or connectors. High voltage cables are typically colored orange for easy identification. Warning: Read and follow all instructions provided on the labels that are attached to Model X. These labels are there for your safety. Warning: In the unlikely event that a fire occurs, immediately contact your local fire emergency responders. Charging 171
