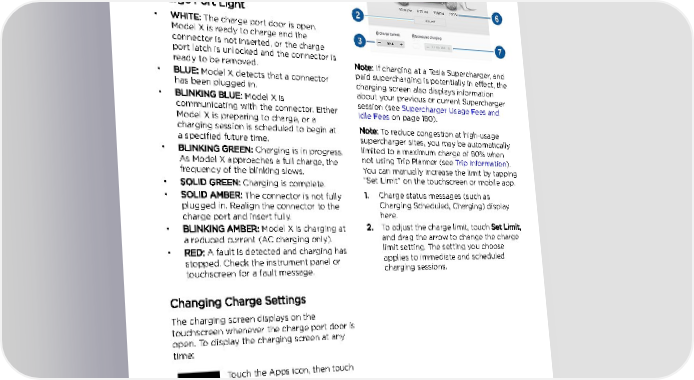

Charging Instructions Warning: Do not attempt to remove the charge cable at the same exact time as you begin to pull the release cable. Always pull the release cable down and hold it before you begin to remove the charge cable from the charge port. Failure to follow these instructions can result in electric shock and serious injury. Charge Port Light • WHITE: The charge port door is open. Model X is ready to charge and the connector is not inserted, or the charge port latch is unlocked and the connector is Note: If charging at a Tesla Supercharger, and ready to be removed. paid supercharging is potentially in effect, the • BLUE: Model X detects that a connector charging screen also displays information has been plugged in. about your previous or current Supercharger • BLINKING BLUE: Model X is session (see Supercharger Usage Fees and communicating with the connector. Either Idle Fees on page 180). Model X is preparing to charge, or a charging session is scheduled to begin at Note: To reduce congestion at high-usage a specified future time. supercharger sites, you may be automatically • BLINKING GREEN: Charging is in progress. limited to a maximum charge of 80% when As Model X approaches a full charge, the not using Trip Planner (see Trip Information). frequency of the blinking slows. You can manually increase the limit by tapping • SOLID GREEN: Charging is complete. “Set Limit” on the touchscreen or mobile app. • SOLID AMBER: The connector is not fully 1. Charge status messages (such as plugged in. Realign the connector to the Charging Scheduled, Charging) display charge port and insert fully. here. • BLINKING AMBER: Model X is charging at 2. To adjust the charge limit, touch Set Limit, a reduced current (AC charging only). and drag the arrow to change the charge • RED: A fault is detected and charging has limit setting. The setting you choose stopped. Check the instrument panel or applies to immediate and scheduled touchscreen for a fault message. charging sessions. Changing Charge Settings The charging screen displays on the touchscreen whenever the charge port door is open. To display the charging screen at any time: Touch the Apps icon, then touch the charging icon. Note: The following illustration is provided for demonstration purposes only and may vary slightly depending on software version and market region. Charging 177
