WALL CONNECTOR LEDS Light Codes Startup Once energized at the circuit breaker, every LED (seven total) on the faceplate will illuminate for one second. After Startup After Wall Connector is energized at the circuit breaker, certain green LEDs (depending on the circuit breaker size) will illuminate for 10 seconds. See table below for exact light codes. Circuit breaker 60 A 50 A 40 A 30 A 20 A 15 A Maximum output 48 A 40 A 32 A 24 A 16 A 12 A NOTE: To re-display the green LEDs after the initial 10 seconds, press and hold the charging handle button. When multiple Wall Connectors are linked for power sharing, the center blue LED will illuminate during the 10-second startup window. Other Standby, waiting to plug SSID broadcasting, ready Waiting to charge, in Charging in progress to commission communicating with vehicle Top green solid Every green streaming Green pulsing Blue solid 26 Gen 3 Wall Connector Manual

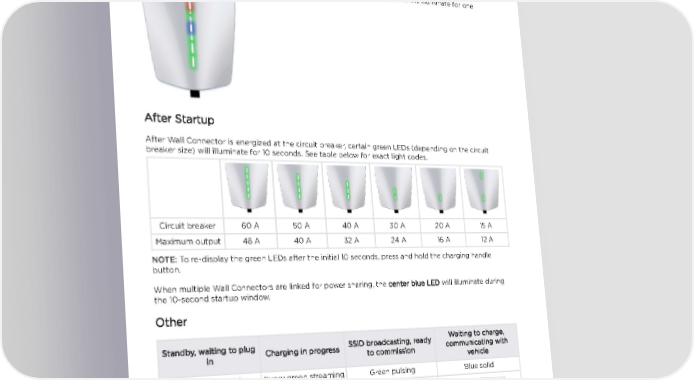

![Tesla Gen 3 Wall Connector | Installation Manual - Page 28](/cdn-cgi/image/width=600,quality=80,format=webp/https://cdn.relayto.com/images_originals/5e3f08cc2c370.jpeg)
