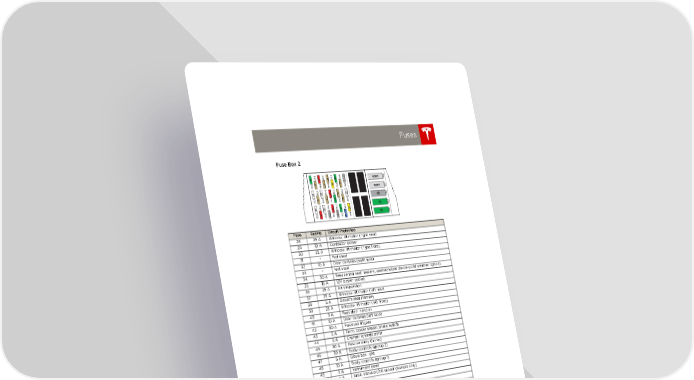

book.book Page 21 Friday, July 19, 2013 12:53 PM Fuses Fuse Box 2 Fuse Rating Circuit Protected 28 25 A Window lift motor (right rear) 29 10 A Contactor power 30 25 A Window lift motor (right front) 31 - Not used 32 10 A Door controls (right side) 33 - Not used 34 30 A Rear center seat heaters, washer/wiper de-ice (cold weather option) 35 15 A 12V power socket 36 25 A Air suspension 37 25 A Window lift motor (left rear) 38 5 A Driver's seat memory 39 25 A Window lift motor (left front) 40 5 A Rear door handles 41 10 A Door controls (left side) 42 30 A Powered liftgate 43 5 A Perm. power sensor, brake switch 44 5 A Charger (charge port) 45 20 A Passive entry (horns) 46 30 A Body controls (group 2) 47 5 A Glove box light 48 10 A Body controls (group 1) 49 5 A Instrument panel 50 5 A Siren, intrusion/tilt sensor (Europe only) 51 20 A Touchscreen 52 30 A Heated rear window 53 5 A Battery management system 54 - Not used 55 30 A Left front electric seat 56 30 A Right front electric seat 57 25 A Cabin fan 58 - Not used 59 - Not used MAINTENANCE 7.21
Tesla Model S | Owner's Manual Page 118 Page 120
