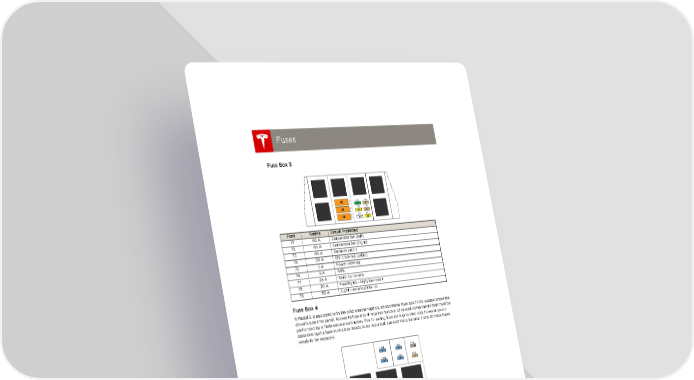

book.book Page 22 Friday, July 19, 2013 12:53 PM Fuses Fuses Fuse Box 3 Fuse Rating Circuit Protected 71 40 A Condenser fan (left) 72 40 A Condenser fan (right) 73 40 A Vacuum pump 74 20 A 12V drive rail (cabin) 75 5 A Power steering 76 5 A ABS 77 25 A Stability control 78 20 A Headlights - high/low beam 79 30 A Light - exterior/interior Fuse Box 4 If Model S is equipped with the cold weather option, an additional fuse box (4) is located under the driver’s side trim panel. Access to fuse box 4 requires removal of several components that must be performed by a Tesla service technician. The following fuse list is provided only to assist you in determining if a fuse in this box needs to be replaced. Contact Tesla Service if one of these fuses needs to be replaced. Fuse Rating Circuit Protected NOTE: THESE FUSES MUST BE REPLACED BY A TESLA SERVICE TECHNICIAN 101 15 A Left rear seat heater 102 15 A Right rear seat heater 103 15 A Middle rear seat heater control 104 15 A Middle rear seat heater 105 15 A Wiper de-icer 106 - Not used 7.22 MODEL S OWNERS MANUAL
